Comprehensive guide for Windows MDE Single-Run RMM Script Creation: retrieving the MDE onboarding package from the Defender portal and creating the detection/remediation combo script for future RMM deployment.
Gather Windows MDE Local Package
- Navigate to the Endpoint Onboarding – Microsoft Defender portal, from the page section the Operating System as Windows 10 and 11, Connectivity Type as Streamlined, and the Deployment Method as Group Policy.
- Once the proper selections have been made, locate, and select Download onboarding package, the GatewayWindowsDefenderATPOnboardingPackage.zip file will be stored to the Downloads folder on the User account.
- We will need to extract the contents of the package, the extracted .zip should house a file named WindowsDefenderATPOnboardingScript.cmd.
Creating the Windows MDE Single-Run Script
- Open a preferred Text Editing software, in this example we will be using Notepad++ but you can utilize any utility that allows creating and saving of custom file types.

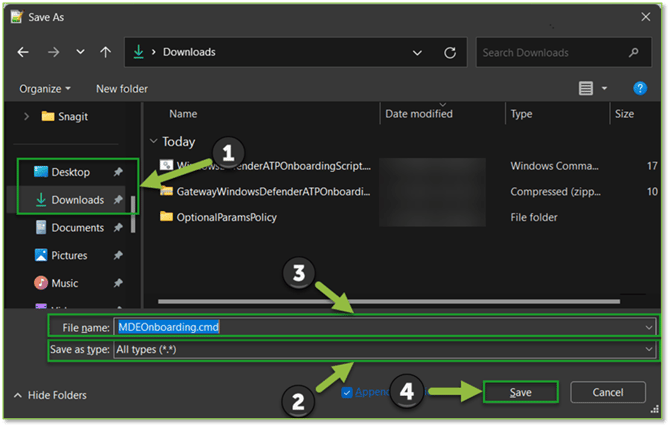

- From the software window we will want to initiate a Save As action since we will be leveraging this script through our RMM Single-Run Script deployment in a separate article. For the file location specify somewhere easily accessible such as the Downloads or Desktop folder, we will want to specify the Save as type as All Types (*.*) and for the File name supply MDEOnboarding.cmd. Once the .cmd file has been specified at the desired directory, select Save to begin script creation.
- After the saving process has been conducted, we will copy and paste the provided contents in the table below into the text field in our software window.
Onboarding Script
@echo off
setlocal
set "registryPath=HKLM\SOFTWARE\Policies\Microsoft\Windows Advanced Threat Protection"
set "registryValueName=OnboardingInfo"
set "regQueryCmd=reg query "%registryPath%" /v "%registryValueName%" 2>nul"
set "registryCheck=0"
set "processCheck=0"
:CheckRegistryValue
%regQueryCmd%
if %ERRORLEVEL% equ 0 (
echo The registry value exists.
set "registryCheck=1"
) else (
if exist "%registryPath%" (
echo The registry value name does not exist.
) else (
echo The path to this value does not exist.
)
)
:CheckATPProcess
tasklist /fi "imagename eq MsSense.exe" 2>NUL | find /I /N "MsSense.exe" >NUL
if "%ERRORLEVEL%" equ "0" (
echo Process is running
set "processCheck=1"
) else (
echo Process is not running
)
if %registryCheck% equ 1 (
if %processCheck% equ 1 (
echo Both checks passed.
exit /b 0
) else (
echo One or both checks failed.
goto Remediation
)
) else (
echo One or both checks failed.
goto Remediation
)
:Remediation
#Copy and Paste the extracted WindowsDefenderATPOnboardingScript.cmd contents here, do not remove endlocal listed below, removal will cause script failure#
endlocal
- After copying and pasting the desired contents from the table into the software window, we will want to focus on line 47 of the code.

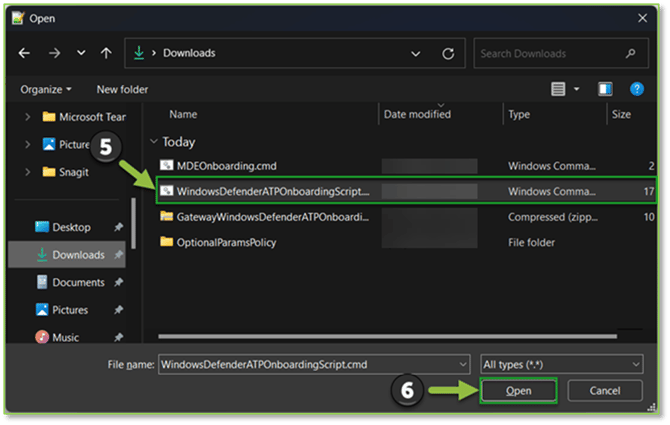

- Based on the prompt we will want to initiate an Open action from our text editor window to view the contents of the previously extracted WindowsDefenderATPOnboardingScript.cmd file.
- From the opened file, we will want to copy all the contents from the WindowsDefenderATPOnboardingScript.cmd window and paste it as a replacement for line 47 of the MDEOnboarding.cmd window.
- After the line 47 replacement has been made, the newly configured onboarding script should be ready to be uploaded for the RMM Single-Run Script deployment.
